ZenBalance

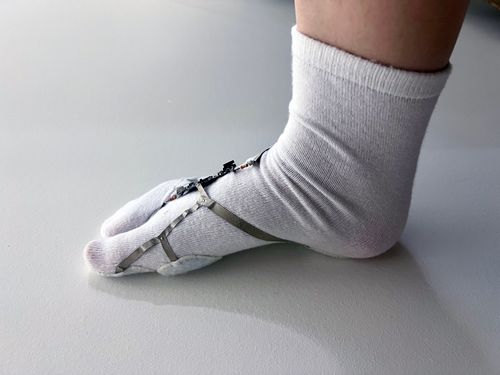

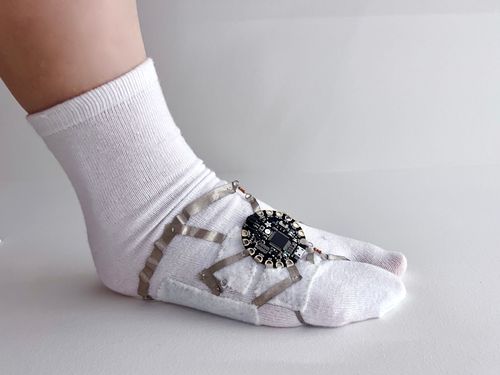

ZenBalance is a specialized training aid designed for yoga enthusiasts and foot training practitioners, aimed at making their training process more efficient, safe, and scientific. Integrated with four analog buttons made of conductive fabric—located at the great toe, medial metatarsal, lateral arch, and heel (calcaneus)—this unique training sock offers instant feedback. It helps users gain a more intuitive understanding of their foot movements, positioning, and weight distribution.

Core Objectives

• Enhanced Self-Perception: Enhanced Self-Perception: Enables practitioners to instantly perceive specific pressure points on their feet, thereby optimizing yoga postures or foot movements.
• Injury Prevention: Enhances foot position and movement awareness to avoid posture-related injuries.
• Foot Health: Regular usage boosts foot health, flexibility, and stability, easing discomfort.
• Senior Well-being: Regular foot exercises enhance strength, grip, and balance in the elderly, significantly reducing the risk of falls and improving their quality of life.

The Importance of Feet in Yoga

While foot and ankle health may not rank high on the list of reasons why people engage in yoga, these areas are crucial for overall wellness. The feet serve as both the foundation and connection to the ground during various activities such as walking, running, dancing, or standing. Their interaction with the ground affects your body's entire alignment, triggering a domino effect from your feet and ankles, through your legs and pelvis, up your spine, to the top of your head.

Foot health and mobility are crucial in yoga for several reasons:

• Stability and Balance: Feet form the body's foundation, affecting stability and balance. Strong, flexible feet are essential for maintaining poses and preventing falls. For instance, in poses like Tree Pose (Vrikshasana) and Warrior III (Virabhadrasana III), a solid, stable base is key to maintaining the posture and preventing falls.

• Strength and Flexibility: Foot strength and flexibility enable complex poses and prevent injuries, crucial for sustained yoga practice.
• Energy Flow: Proper foot placement enhances energy flow (prana) in yoga, improving practice effectiveness.
• Attention and Awareness: Focusing on foot sensations increases bodily awareness, aiding in focused and immersive practice.
• Prevention and Rehabilitation: Yoga can prevent and rehabilitate foot issues like Achilles Tendonitis by strengthening muscles and improving structure, beneficial for practitioners with foot problems.

The Hazards of Improper Foot Placement

Ignoring the health of your feet and ankles over time can lead to significant issues. Several uncomfortable conditions can develop without proper care, including achilles tendonitis, plantar fasciitis, heel spurs, tendinitis, shin splints, bunions, and osteoarthritis.

Foot sole area

The skin regions were traced from an optical scan of each individual's right foot sole (light green outlines), and digital area measurements were made using ImageJ software. Toes, digits 2-5; GT, great toe; LatArch, MidArch, and MedArch, lateral, middle, and medial arch; LatMet, MidMet, and MedMet, lateral, middle, and medial metatarsals; Heel, calcaneus.

Reference:
Strzalkowski, Nicholas & Peters, Ryan & Inglis, John & Bent, Leah. (2018). Cutaneous afferent innervation of the human foot sole: What can we learn from single unit recordings?. Journal of Neurophysiology. 120. 10.1152/jn.00848.2017.

In yoga, the proper movement and positioning of the feet are critical, as improper postures can exacerbate or cause foot injuries. Deviation from a neutral foot(is one in which the heel bone is vertical) and ankle position, particularly repeated pronation (inward tilt) or supination (outward tilt), can damage the tissues at the sole of the foot.

A proper foot position allows for healthy weight-bearing and helps avoid these issues. Excessive pronation or supination is not only related to foot issues but also linked to the positioning of the thighs and knees. Thus, adjusting the feet and knees to a neutral position is essential for injury prevention and optimizing practice outcomes.

The Difficulty of Maintaining Proper Foot Placement

However, for many practitioners, especially beginners and those new to foot training, recognizing and maintaining the correct position of the feet and knees can be challenging. Awareness in yoga is key, but it requires time and practice to develop. Proper posture is vital for avoiding injuries and enhancing practice effectiveness, yet mastering it can be difficult for many.

How does ZenBalance work?

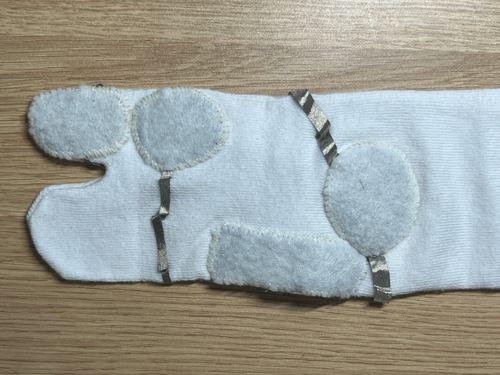

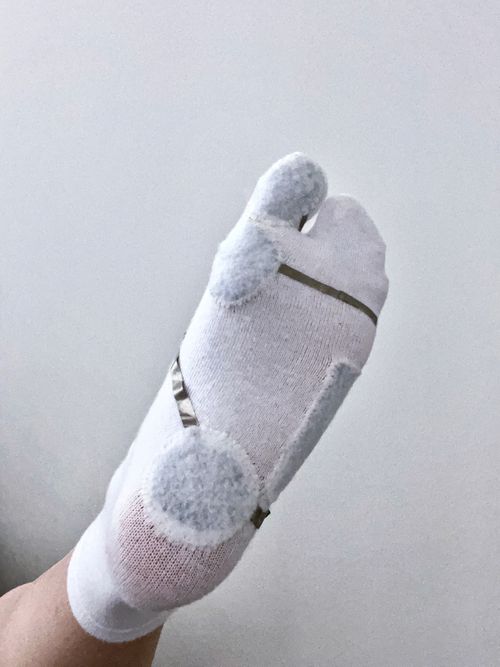

The principle of ZenBalance is to monitor pressure values at four key locations on the foot: the great toe, medial metatarsal, lateral arch, and heel (calcaneus), using analog buttons distributed at these points. These values are fed back to a dynamic interface, allowing users to intuitively see changes in foot positioning.

The level of pressure is indicated by different colors on the dynamic interface. High pressure is represented by red, moderate by green, and low by blue. The three different foot placements are distinguished by comparing their combined numerical values.

When pronation occurs, the input value at the great toe and medial metatarsal will be high.

When neutral, the force will be distributed across the great toe, lateral arch and heel.

During Supination, the values at the lateral arch and heel will be high.

Demo

Summary

This project represents a significant advancement in making yoga practice safer and more effective through enhanced awareness and injury prevention. ZenBalance is not just a training aid; it is a commitment to long-term health and well-being, suitable for anyone concerned about foot health.

Other Possibility

Fabrication Process

Sketch

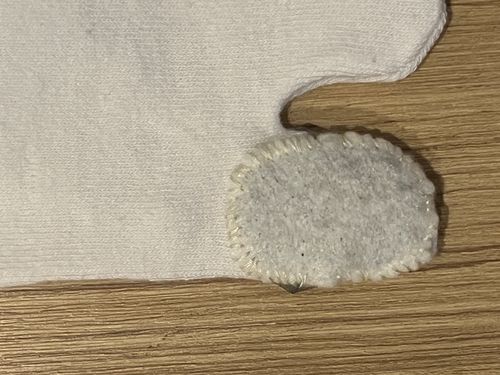

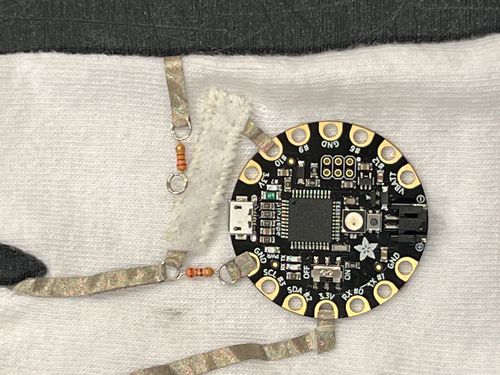

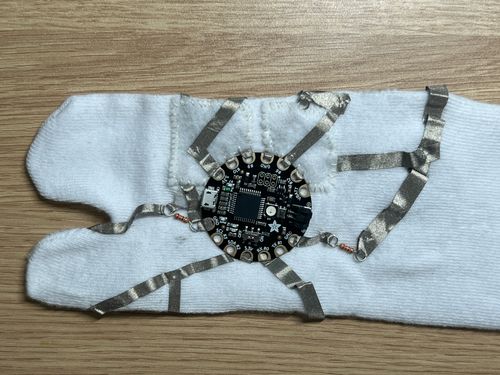

Fabric Circuit

Technical Challenge

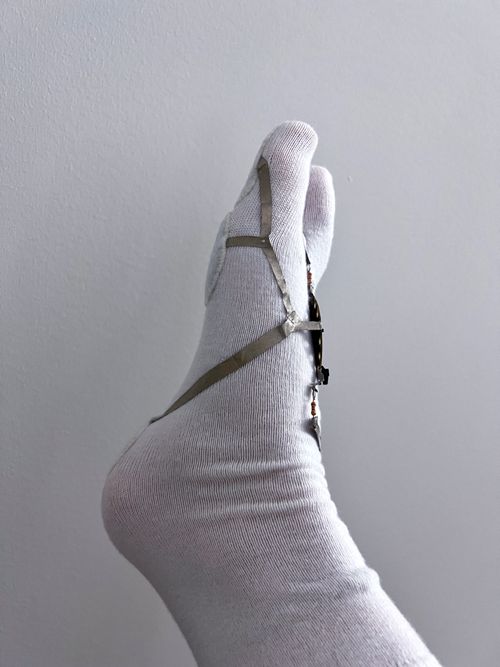

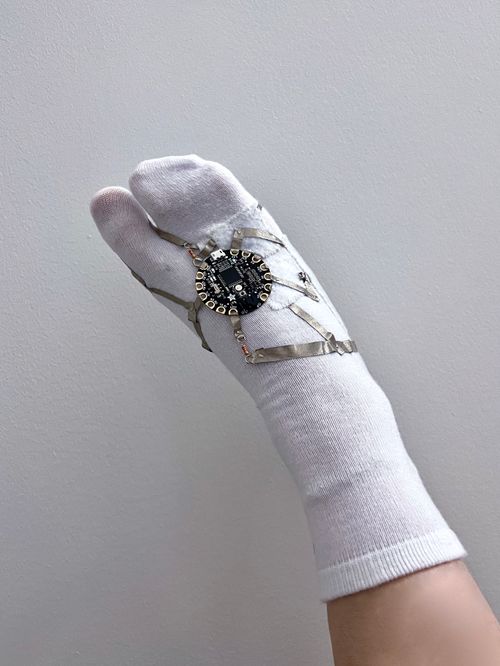

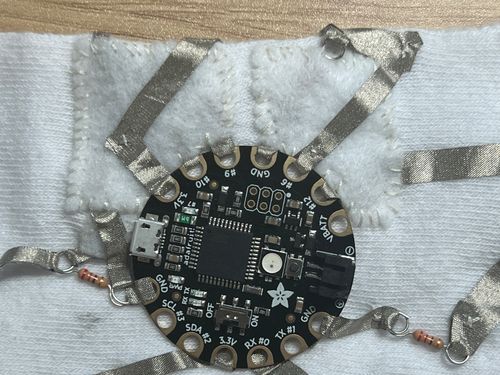

The circuitry of the four buttons inevitably intersects, and a rational layout design can only minimize the number of crossings. Without intervention, a short circuit would occur. I have opted to interpose a layer of non-conductive fabric between the intersecting circuits as an insulating barrier.
